物料参数

Product Lifecycle:	量产

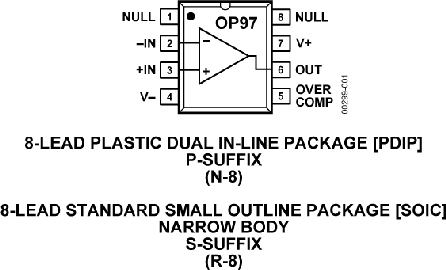

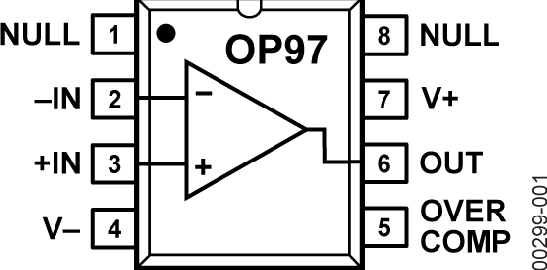

Package:	8-Lead PDIP,8-Lead SOIC,CERDIP GLASS SEAL
# of Amps:	1
GBP (typ):	900kHz
BW -3 dB (typ):	900kHz
Slew Rate (typ):	200mV/us
Vos (typ):	30µV
Vos (max):	25µV
Vos TC (typ):	300nV/°C
Vos TC (max):	2µV/°C
VNoise Density (typ):	14nV/rtHz
Current Noise Density (typ):	20fA/rtHz
0.1 to 10 Hz VNoise (typ):	500nV p-p
Ibias (typ):	30pA
Ibias (max):	100pA
Ios (typ):	30pA
Ios (max):	100pA
Iq/Amp (typ):	600µA
Iq/Amp (max):	600µA
Vs span (min):	4V
Vs span (max):	40V
CMRR (typ):	114dB
CMRR (min):	114dB
Input Architecture:	Bipolar
PSRR DC (min):	114dB
PSRR DC (typ):	132dB
In V+ Headroom (typ):	1V
In V+ Headroom (max):	1.5V
In V- Headroom (typ):	1V
In V- Headroom (max):	1.5V
Out V+ Headroom (max):	2V
Out V+ Headroom (typ):	1V
Out V- Headroom (typ):	1V
Out V- Headroom (max):	2V
Aol (typ):	110dB
Min Stable Gain:	1V/V
Shutdown:	No
Amp Features:	Op Amp
Over-the-Top:	No
Open Loop Rout:	50Ohms
Feedback Type:	Voltage
Package Area:	31mm² (8-Lead SOIC) (OP97FSZ)mm²
Eval / Ref Circuit:	Evaluation board
Export Classification:	EAR99
Automotive:	No
Reliability Level:	883
Temp Range:	-55 to 125°C
Package Finish Code:	E3, PB
Package Height:	1.75mm (8-Lead SOIC) (OP97FSZ)mm
Launch Date:	2005-08-15
Terminal Finish:	E3, PB
Temp Range Code:	NA
EP:	No
