物料参数

Product Lifecycle:	推荐用于新设计

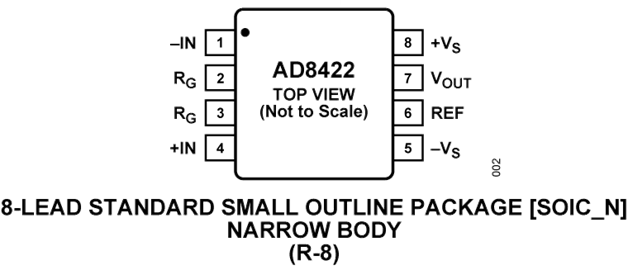

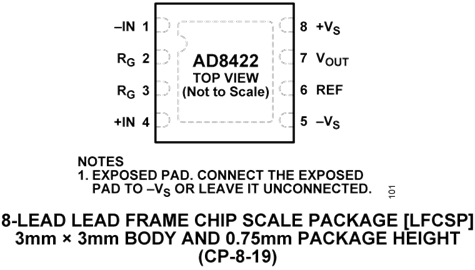

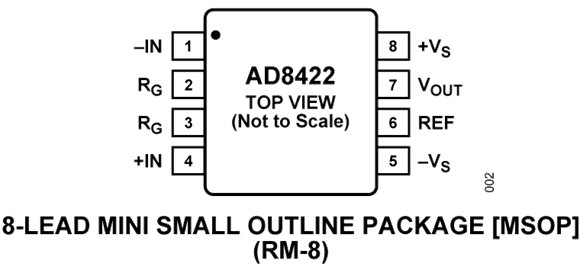

Package:	8-Lead LFCSP (3mm x 3mm w/ EP),8-Lead SOIC,8-Lead MSOP
# of Amps:	1
Vos (max):	25µV
Gain Set:	Resistor
Gain (min):	1V/V
Gain (max):	1000V/V
BW - low gain (typ):	2.2MHz
Ibias (max):	500pA
Input Voltage Noise (typ):	8nV/rtHz
Iq/Amp (max):	368µA
Vs span (min):	4.6V
Vs span (max):	36V
Short Circuit Current:	20mA
0.1 to 10 Hz VNoise (typ):	150nV p-p
CMRR - Low Gain (min):	94dB
CMRR - High Gain (min):	150dB
Current Noise Density (typ):	90fA/rtHz
In V+ Headroom (max):	1.1V
In V- Headroom (max):	1.2V
Out V+ Headroom (max):	200mV
Out V- Headroom (max):	200mV
Output Voltage Noise (typ):	80nV/rtHz
Gain TC - Low Gain (max):	1ppm/°C
Gain TC - High Gain (max):	80ppm/°C
Gain Error - High Gain (max):	0.04%
Gain Error - Low Gain (max):	0.01%
Ios (max):	150pA
Rail to Rail:	Output
0.1 to 10 Hz Current Noise (typ):	8pA p-p

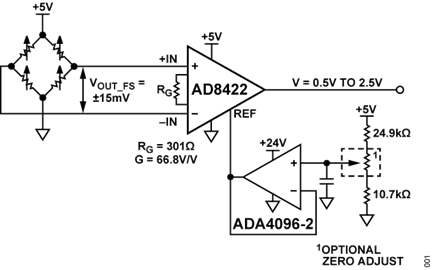

Eval / Ref Circuit:	Evaluation board
Export Classification:	EAR99
Automotive:	No
Temp Range:	-40 to 125°C
Package Area:	9mm² (8-Lead LFCSP (3mm x 3mm w/ EP)) (AD8422ACPZ-R7)mm²
Package Height:	0.8mm (8-Lead LFCSP (3mm x 3mm w/ EP)) (AD8422ACPZ-R7)mm
Launch Date:	2013-05-03
EP:	No
Design Tools:	In-Amp Diamond Plot Tool, LTspice
Amp Features:	Over Voltage Protection (OVP)
Cdiff (typ):	2pF
Ccm (typ):	2pF
Rdiff (typ):	200GOhms
Rcm (typ):	200GOhms
Output Type:	Single Ended
Iq/Amp (typ):	338µA

价格梯度	价格
1+	¥28.3887
包装：1	库存：0
