AD8250ARMZ
品牌
供应商
分类
放大器>>仪表放大器
描述
10 MHz、20 V/µs、G = 1、2、5、10、iCMOS®可编程增益仪表放大器
物料参数
| Product Lifecycle: | 量产 |

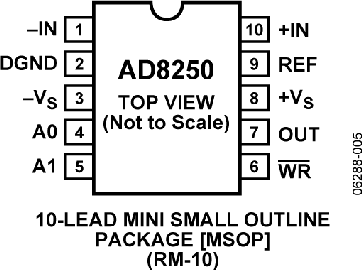

| Package: | 10-Lead MSOP |
| # of Amps: | 1 |
| Vos (max): | 200µV |
| Vos TC (max): | 6.2µV/°C |
| Gain Set: | Digital |
| Gain (min): | 1V/V |
| Gain (max): | 10V/V |
| BW - low gain (typ): | 10MHz |
| Ibias (max): | 30nA |
| Input Voltage Noise (typ): | 18nV/rtHz |
| Iq/Amp (max): | 4.5mA |
| Vs span (min): | 10V |
| Vs span (max): | 30V |
| 0.1 to 10 Hz VNoise (typ): | 1µV p-p |
| CMRR - Low Gain (min): | 80dB |
| CMRR - High Gain (min): | 98dB |
| Current Noise Density (typ): | 5pA/rtHz |
| In V+ Headroom (max): | 1.5V |
| In V- Headroom (max): | 1.5V |
| Out V+ Headroom (max): | 1.5V |
| Out V- Headroom (max): | 1.5V |
| Output Voltage Noise (typ): | 36nV/rtHz |
| Gain TC - Low Gain (max): | 10ppm/°C |
| Gain TC - High Gain (max): | 10ppm/°C |
| Gain Error - High Gain (max): | 0.04% |
| Gain Error - Low Gain (max): | 0.03% |
| Ios (max): | 30nA |
| 0.1 to 10 Hz Current Noise (typ): | 60pA p-p |
| Eval / Ref Circuit: | Evaluation board |
| Export Classification: | EAR99 |
| Automotive: | No |
| Temp Range: | -40 to 85°C |
| Package Area: | 15.965mm² (10-Lead MSOP) (AD8250ARMZ)mm² |
| Package Height: | 1.1mm (10-Lead MSOP) (AD8250ARMZ)mm |
| Launch Date: | 2008-02-25 |
| EP: | No |
| Design Tools: | In-Amp Diamond Plot Tool |
| Cdiff (typ): | 500fF |
| Ccm (typ): | 2pF |
| Rdiff (typ): | 5.3GOhms |
| Rcm (typ): | 1.25GOhms |
| Output Type: | Single Ended |
| Iq/Amp (typ): | 4.1mA |
| 价格梯度 | 价格 |
|---|---|
| 1+ | ¥63.6755 |
| 包装：1 | 库存：0 |
