AD8531AKSZ-REEL7
品牌
供应商
分类
放大器>>运算放大器>>高输出电流运算放大器 (≥ 100mA)
描述
250 mA输出、低成本、单电源放大器
物料参数
| Product Lifecycle: | 量产 |

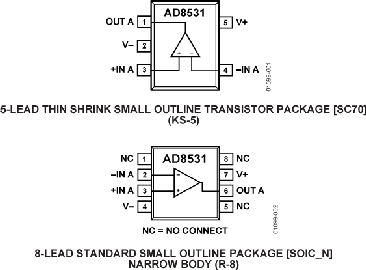

| Package: | 5-Lead SC70,8-Lead SOIC,5-Lead SOT-23 |
| # of Amps: | 1 |
| GBP (typ): | 3MHz |
| BW -3 dB (typ): | 350kHz |
| Slew Rate (typ): | 5V/us |
| Vos (typ): | 25mV |
| Vos (max): | 25mV |
| Vos TC (typ): | 20µV/°C |
| VNoise Density (typ): | 30nV/rtHz |
| Current Noise Density (typ): | 50fA/rtHz |
| 1 Hz Inoise (typ): | 1.7pA/rtHz |
| Ibias (typ): | 5pA |
| Ibias (max): | 50pA |
| Ios (typ): | 1pA |
| Ios (max): | 25pA |
| Rail to Rail: | Both |
| Iq/Amp (typ): | 750µA |
| Iq/Amp (max): | 1.25mA |
| Vs span (min): | 2.7V |
| Vs span (max): | 6V |
| CMRR (typ): | 38dB |
| CMRR (min): | 38dB |
| Input Architecture: | CMOS |
| PSRR DC (min): | 45dB |
| PSRR DC (typ): | 55dB |
| Out V+ Headroom (max): | 100mV |
| Out V+ Headroom (typ): | 60mV |
| Out V- Headroom (typ): | 50mV |
| Out V- Headroom (max): | 100mV |
| Aol (typ): | 84dB |
| Min Stable Gain: | 1V/V |
| Shutdown: | No |
| Iout (typ): | 250mA |
| Amp Features: | LCD Driver |
| Over-the-Top: | No |
| Ccm (typ): | 20pF |
| Cdiff (typ): | 20pF |
| Open Loop Rout: | 120Ohms |
| Feedback Type: | Voltage |
| Package Area: | 5.28mm² (5-Lead SC70) (AD8531AKSZ-REEL7)mm² |
| Eval / Ref Circuit: | Evaluation board |
| Export Classification: | EAR99 |
| Automotive: | No |
| Temp Range: | -40 to 85°C |
| Package Finish Code: | E3, E4 |
| Package Height: | 1.1mm (5-Lead SC70) (AD8531AKSZ-REEL7)mm |
| Launch Date: | 2005-05-03 |
| Terminal Finish: | E3, E4 |
| Temp Range Code: | NA |
| EP: | No |
