ADA4805-1AKSZ-R2
品牌
供应商
分类
放大器>>运算放大器>>精密运算放大器 (Vos<1mV且TCVos<2uV/C)
描述
0.2 µV/°C 失调漂移、105 MHz 低功耗、低噪声、轨到轨放大器
物料参数
| Product Lifecycle: | 推荐用于新设计 |

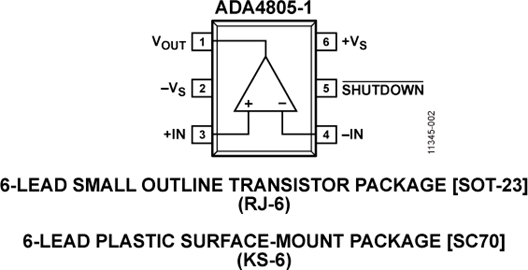

| Package: | 6-Lead SC70,6-Lead SOT-23 |
| # of Amps: | 1 |
| GBP (typ): | 30MHz |
| BW -3 dB (typ): | 105MHz |
| Slew Rate (typ): | 190V/us |
| Vos (typ): | 9µV |
| Vos (max): | 125µV |
| Vos TC (typ): | 200nV/°C |
| VNoise Density (typ): | 5.2nV/rtHz |
| Current Noise Density (typ): | 700fA/rtHz |
| 1 Hz Inoise (typ): | 12pA/rtHz |
| 1 Hz Vnoise (typ): | 25nV/rtHz |
| 0.1 to 10 Hz VNoise (typ): | 300nV p-p |
| Ibias (typ): | 470nA |
| Ibias (max): | 800nA |
| Ios (typ): | 400pA |
| Ios (max): | 600pA |
| Rail to Rail: | In to V-, Output |
| Iq/Amp (typ): | 570µA |
| Iq/Amp (max): | 520µA |
| Vs span (min): | 2.7V |
| Vs span (max): | 10V |
| CMRR (typ): | 130dB |
| CMRR (min): | 103dB |
| Input Architecture: | Bipolar |
| PSRR DC (min): | 100dB |
| PSRR DC (typ): | 120dB |
| In V+ Headroom (typ): | 1V |
| In V- Headroom (typ): | -0.1V |
| Out V+ Headroom (max): | 20mV |
| Out V+ Headroom (typ): | 20mV |
| Out V- Headroom (typ): | 20mV |
| Out V- Headroom (max): | 20mV |
| Aol (typ): | 111dB |
| Min Stable Gain: | 1V/V |
| Shutdown: | Yes |
| Iout (typ): | 47mA |
| Amp Features: | Rail-to-Rail Output |
| Over-the-Top: | No |
| Ccm (typ): | 1.7pF |
| Cdiff (typ): | 1pF |
| Open Loop Rout: | 30Ohms |
| Feedback Type: | Voltage |
| Package Area: | 5.28mm² (6-Lead SC70) (ADA4805-1AKSZ-R2)mm² |

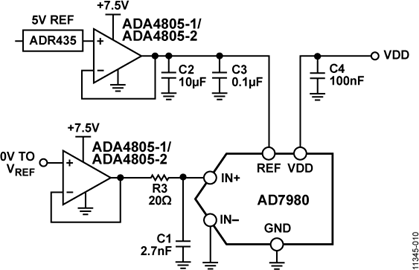

| Eval / Ref Circuit: | Evaluation board, Reference circuit |
| Export Classification: | EAR99 |
| Automotive: | No |
| Temp Range: | -40 to 125°C |
| Package Finish Code: | E3, E4 |
| Package Height: | 1.1mm (6-Lead SC70) (ADA4805-1AKSZ-R2)mm |
| Launch Date: | 2014-06-20 |
| Terminal Finish: | E3, E4 |
| Temp Range Code: | NA |
| EP: | No |
| Design Tools: | LTspice, Precision ADC Driver Tool |
