IAUT260N10S5N019
品牌
供应商
分类
Power>>MOSFET (Si/SiC)>>Automotive MOSFET
描述
100V, N-Ch, 1.9 mΩ max, Automotive MOSFET, TOLL, OptiMOS™-5
物料参数
| I[Dpuls] max: | 1040.0A |
| R[thJC] max: | 0.5K/W |
| V[GS] max: | 100.0V |
| P[tot] max: | 300.0W |

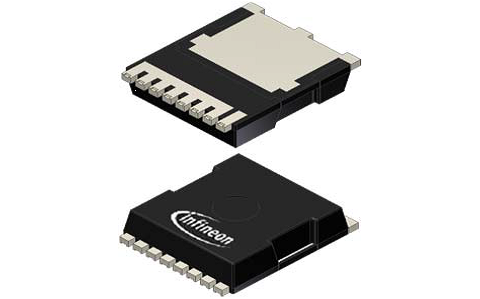

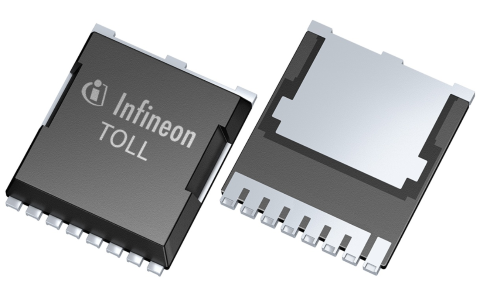

| Package: | TOLL (PG-HSOF-8) |
| V[DS] max: | 100.0V |
| Qualification: | Automotive |
| Polarity: | N |
| I[D ](@25°C) max: | 260.0A |
| Technology: | OptiMOS™-5 |
| R[DS (on)](@10V) max: | 1.9mΩ |
| Operating Temperature max: | 175.0°C |
| Q[G](typ @10V): | 128.0nC |
| Q[G](typ @10V) max: | 166.0nC |
| V[GS(th)]: | 3.0V |
| Currently planned availability until at least: | 2038 |
| Launch year: | 2017 |
| Budgetary Price €/1k: | 1.77 |
