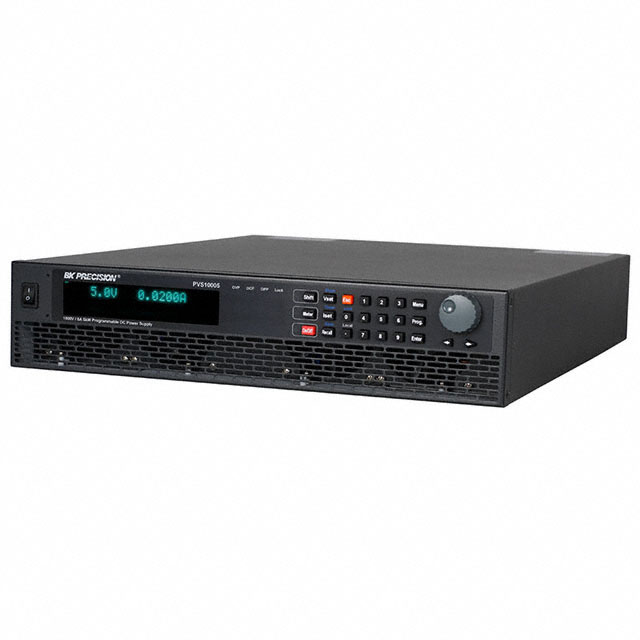

PVS60085MR
品牌
B&K PRECISION
供应商
物料参数
| Current Regulation - Load: | 8.5mA |
| standardLeadTime: | 16 Weeks |
| Voltage Regulation - Load: | 60mV |
| Product Status: | Active |
| Voltage Regulation - Line: | 60mV |
| Display Type: | VFD |
| Voltage-Output: | 0 ~ 600VDC |
| Voltage - Supply: | 170 ~ 265VAC |
| Current Regulation - Line: | 4.25mA |
| Voltage-Supply: | 170 ~ 265VAC |
| Accuracy - Voltmeter; Ammeter: | 400mV, 0.03% + 3.5mA |
| MoistureSensitivityLevel(MSL): | Not Applicable |
| ECCN: | 3A992A |
| rolledUpProductNumber: | BKPVS60085MR-ND |
| Current-Output: | 0 ~ 8.5A |
| Size / Dimension: | 20.945 L x 16.535 W x 3.465 H (532.00mm x 420.00mm x 88.00mm) |
| Weight: | 32 lbs (14.5 kg) |
| Power(Watts): | 3000W |
| Power (Watts): | 3000W |
| Accuracy-Voltmeter;Ammeter: | 400mV, 0.03% + 3.5mA |
| CurrentRegulation-Load: | 8.5mA |
| detailedDescription: | 0 ~ 600VDC Output Bench (AC to DC) Power Supply VFD 0 ~ 8.5A Output 3000W Features Memory, Programmable, GPIB, LAN, RS232, and USB Interface |
| datasheetUrl: | https://bkpmedia.s3.amazonaws.com/downloads/datasheets/en-us/PVS_series_datasheet.pdf |
| manufacturerUrl: | /en/supplier-centers/bk-precision |
| NumberofCharacters: | - |
| Ripple: | 100mV rms, 500mV p-p |
| Package: | Box |
| HTSUS: | 8504.40.9540 |
| CurrentRegulation-Line: | 4.25mA |
| lnkProductPhoto: | https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/2578/MFG_PVS series.jpg |
| VoltageRegulation-Load: | 60mV |
| Category: | Test and MeasurementEquipmentPower Supplies (Test, Bench) |
| Current - Output: | 0 ~ 8.5A |
| description: | 600V 8.5A 3KW DC PS RM |
| manufacturer: | B&K Precision |
| manufacturerProductNumber: | PVS60085MR |
| NumberofOutputs: | 1 |
| VoltageRegulation-Line: | 60mV |
| Voltage - Output: | 0 ~ 600VDC |
| Mfr: | B&K Precision |
| Features: | Memory, Programmable, GPIB, LAN, RS232, and USB Interface |
| isNormallyStocking: | True |
| DisplayType: | VFD |
| RoHSStatus: | Not applicable |
| ProductStatus: | Active |
| Size/Dimension: | 20.945 L x 16.535 W x 3.465 H (532.00mm x 420.00mm x 88.00mm) |
| REACHStatus: | REACH Unaffected |
| Number of Outputs: | 1 |
| Series: | PVS |
| Type: | Bench (AC to DC) |
| Number of Characters: | - |
| rolledUpProductId: | 4927859 |
